Durable Gearbox

Twin 400 mm discs increase clutch life. 330 Nm peak torque ensures outstanding perfomance on grades.

Smooth Drives

Combining a steering-mounted paddle gear shift with power-shift transmission makes driving easy and stress-free under all road and traffic conditions.

Robust Axles

Ready for the roughest roads. Thick teeth on the heavy-duty crown wheel increases contact area, while the differential increases torque.

Introduction of FUSO TV

Developed from a Daimler Technology platform, the FUSO TV 3340S is specially designed to meet the local demand for high powered and fuel-efficient tractors by Kenyan container transporters. The TV 3340S Tractor with technical GCW of 65 tons is equipped with the OM457 – a new 6 Cylinder, 11.97 litre engine with 400hp that is used in a FUSO truck for the first time. This engine has already proven itself for its power and efficiency in other Daimler Truck products. The model adopts 12 speed power shift transmission and a hub-reduction with optimized rear axle ratios for different applications. The interior of the truck includes a full cabin with a sleeper berth.

Photo Gallery

Photo Gallery

Detailed Information

ENGINE

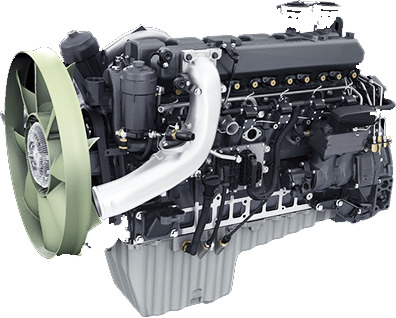

Dynamic Engine

ECU-controlled fuel injection delivers unmatched fuel efficiency. 2-bar boost pressure turbocharger for additional power. 28 CuM air cleaner with cyclone type pre-cleaner ensures longer life.

GEARBOX

Durable Gearbox

Twin 400 mm discs increase clutch life. 330 Nm peak torque ensures outstanding perfomance on grades. Higher 152 mm distance between main and counter shafts increases maneuverability when carrying heavy loads.

CHASSIS

Muscular Chassis

Powder coated and shot blasted to enhance corrosion resistance. Optimized cross members with long, thick bulges improve load-bearing and bending capability while further increasing durability.

CAB

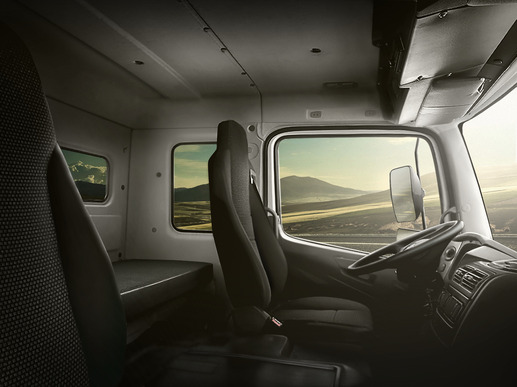

Luxurious Cabin

Spacious, air-conditioned, designed in every detail to improve driver productivity. Plenty of room for big, comfortable seats and lots of handy storage space as well. Cruise control standard.

Specifications

MODEL

TV3340S

MODEL CODE

TVY2SJR2RB1A
6×4

WEIGHTS (Kg)

Max. G.V.W

65,000

Kerb Weight (Approx.)

9,940

DIMENSIONS

Wheelbase

4,650

Overall Length

8,835

Overall Width

2,490

Overall Height

3,362

ENGINE & CALCULATED PERFORMANCE

Max Speed (km/h) (Speed limiter – 80kmph)

80

Max. Gradeability (%)

29.5 (running)

Min.Turning circle diameter (m)

16.6

Engine Model

OM457LA, 11,970L

Engine Type

Compression ignition, 4-stroke, direct injection, turbo charged
intercooled engine

No. of Cylinders

6

Max. Power

295 kW/397 hp @ 1900 rpm

Max. Torque (Nm)

2000 Nm @ 1100 rpm

Emission

EURO III

Clutch

Dry – Twin plate, diaphragm type pneumatic operated with automatic
control. No clutch pedal

Transmission

12 Forward & 4 Reverse

CHASSIS

Rear axle

Full floating, Hypoid gears

Front axle

Reverse Elliott, I – beam

Front spring

Parabolic

Rear spring

Multileaf spring bogie

Diff. Lock

Standard

Tire size

315/80R22.5, 18PR (Tubeless)

Steering column

Telescopic and tilt steering column
with steering lock

Steering gear

Integral power assisted

King Pin offset (mm)

325

BRAKES

Parking brake

Pneumatically operated spring brake actuator acting on rear axle

Service brakes

Pneumatic, foot operated, dual line acting on all wheels

Auxiliary brake (Engine & Exhaust)

Standard

ABS

Standard

OTHERS (Electrical System, Fuel Tank, Cab)

Alternator battery volt/ Normal output

24V / 100A

Battery

2 x 12V, 165 Ah

Cab Type

Sleeper cab

Fuel tank capacity

455L
