PerformanceZetor Proxima tractors are reliable agricultural machines combining consistent horsepower from the engine and a high-quality gearbox. Therefore they achieve high performance in any situation.
Endurance
EnduranceTheir simple, robust construction makes Proxima models reliable in even the heaviest conditions. Zetor tractors are designed in such a way to ensure that a long life is assured.
Total Cost of Ownership
Total Cost of OwnershipBy combining versatility and low operating costs, the Proxima family’s models are efficient and economical to own. Proxima Tractors

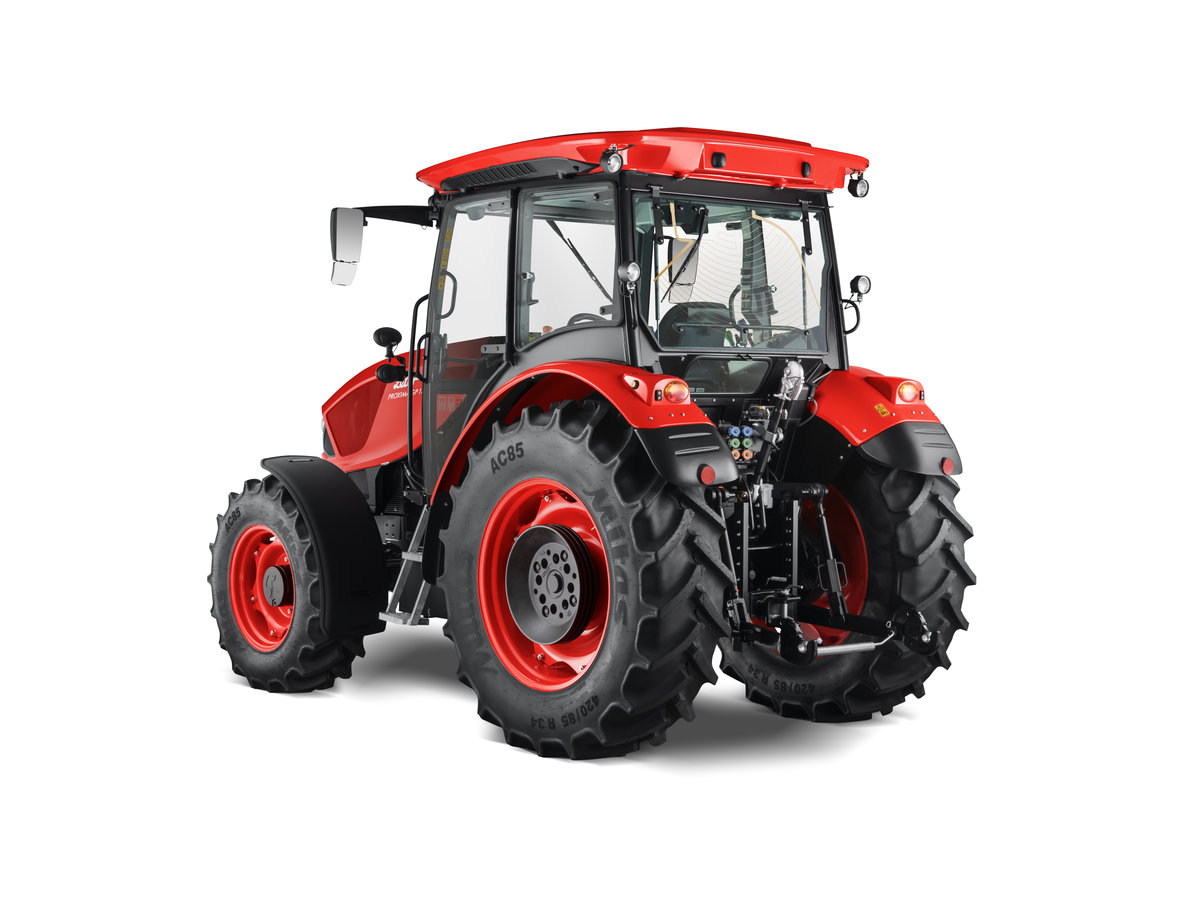

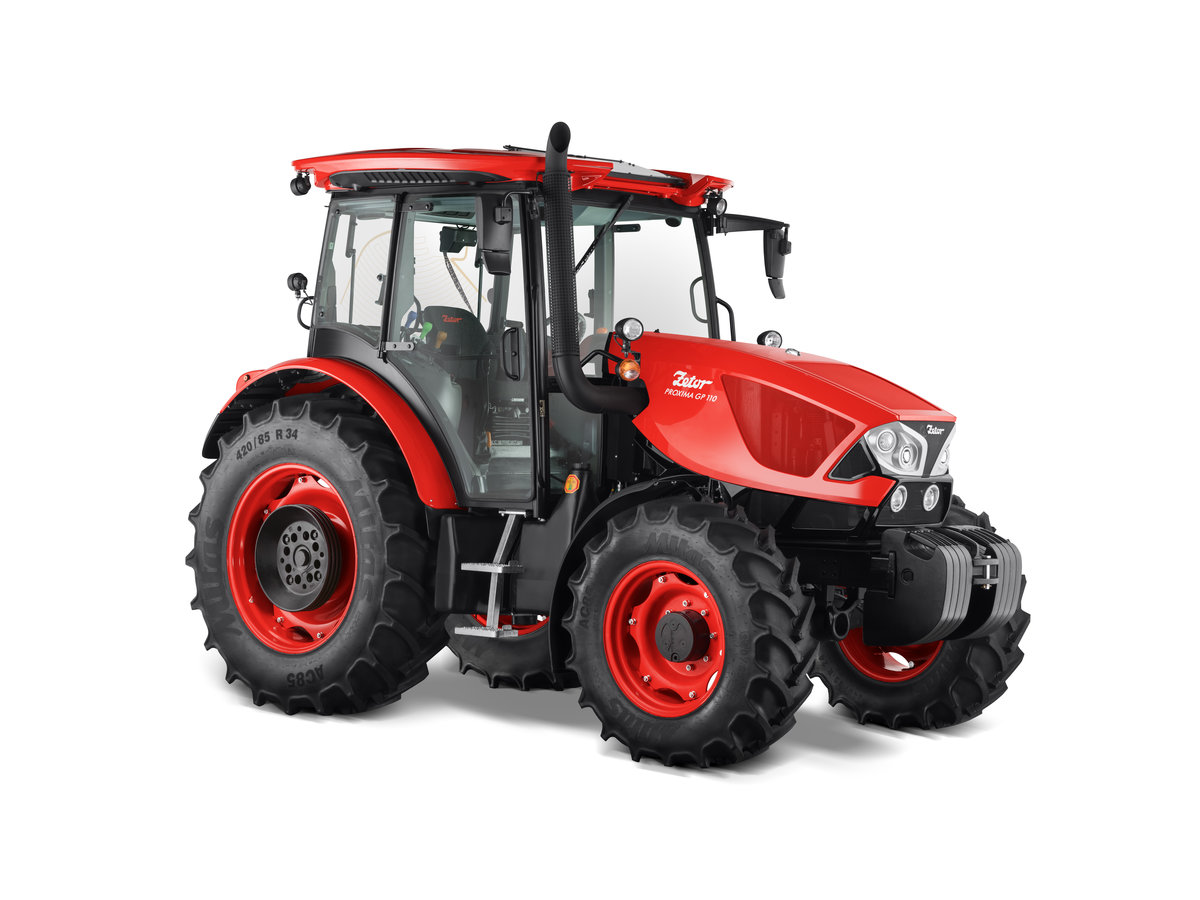

Introduction of Zetor Proxima
Universal, reliable and robust perfectly describe Proxima tractors, which rank as the most popular models of the Zetor brand. These machines meet customers’ demanding requirements for work in agriculture, forestry and municipal service.
Photo Gallery
Detailed Information

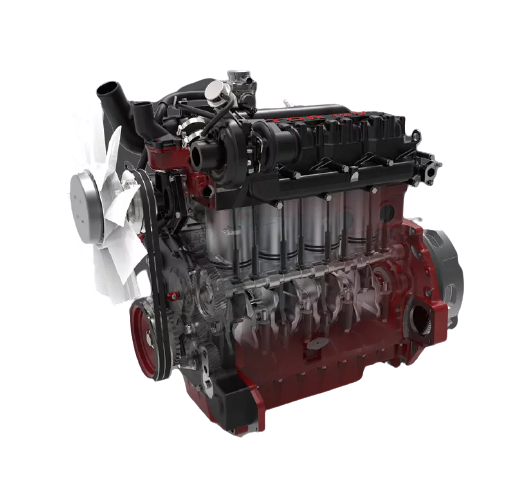

ENGINE
Powerful with low
consumption
Proxima tractors are equipped with four-cylinder Zetor engines offering 80 to 120 horsepower. With a simple design and no unnecessary electronics, these provide low fuel consumption and therefore guarantee low operating costs, minimal maintenance requirements and high durability.

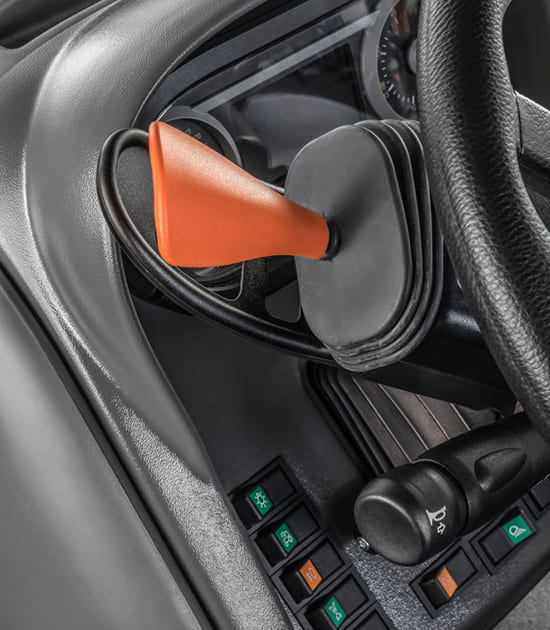

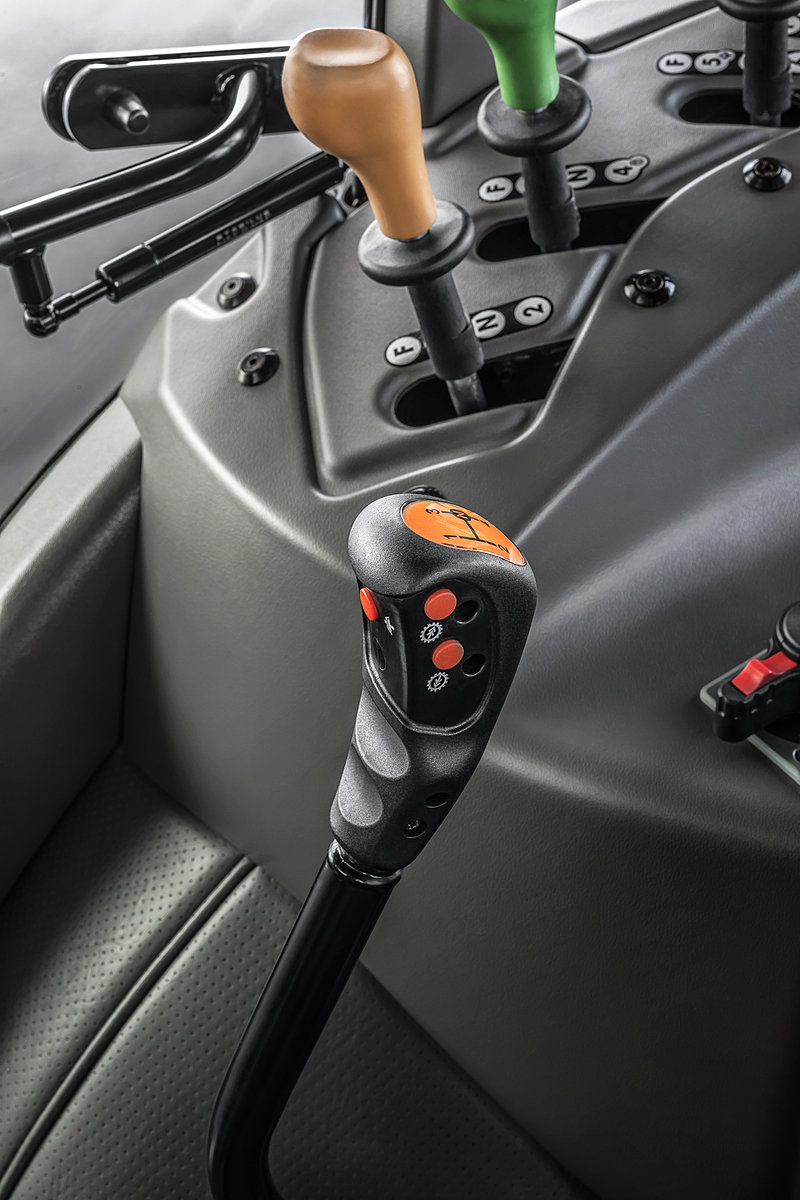

GEARBOX
High endurance
and long life
There is a choice of gearbox options for Proxima tractors. The Proxima CL model has a universal, mechanical type of gearbox that is the only one that is available with creeper speeds. The Proxima GP model features a gearbox with a two-stage torque multiplier (PowerShift), while the Proxima HS model features the most modern solution with a three-stage torque multiplier (PowerShift) and hydraulic reverser (PowerShuttle).

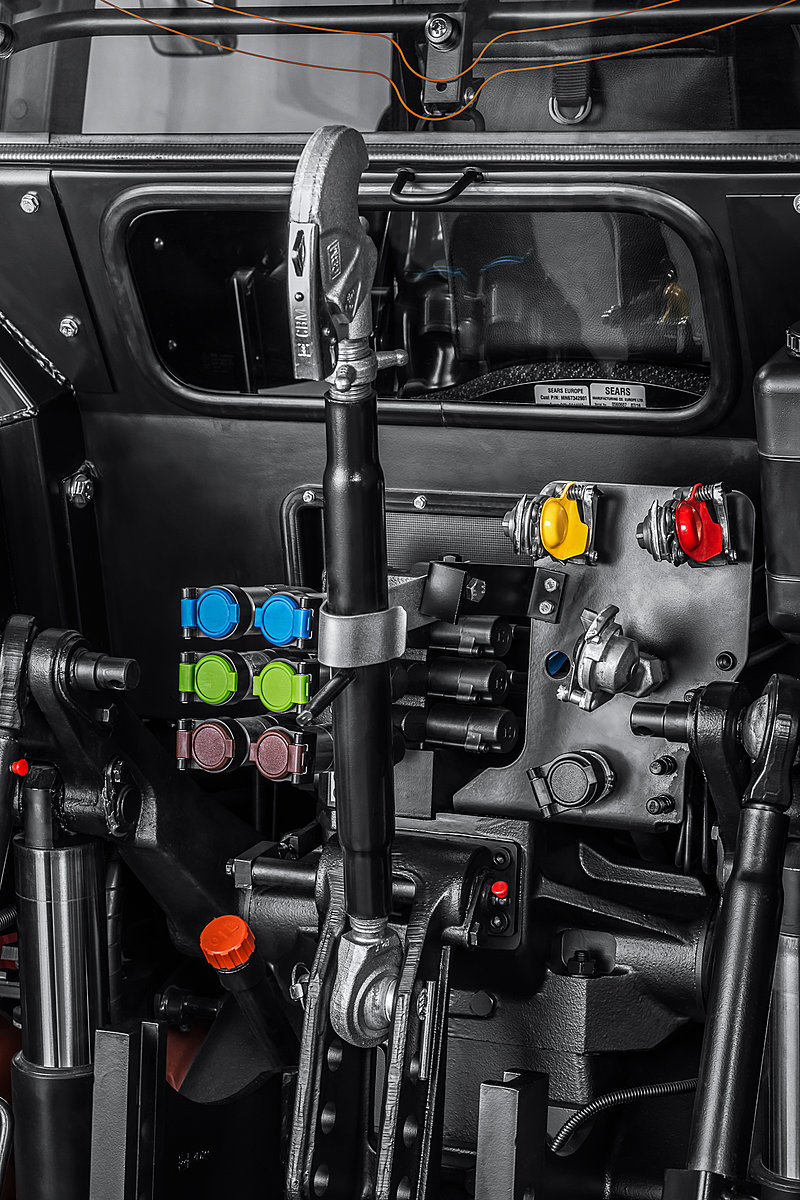

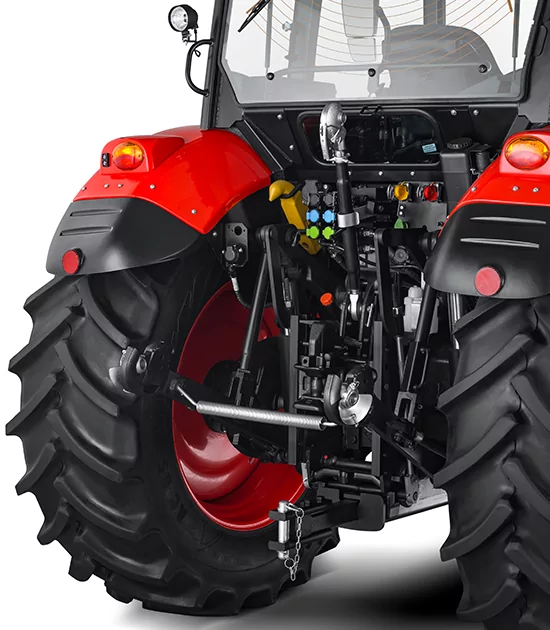

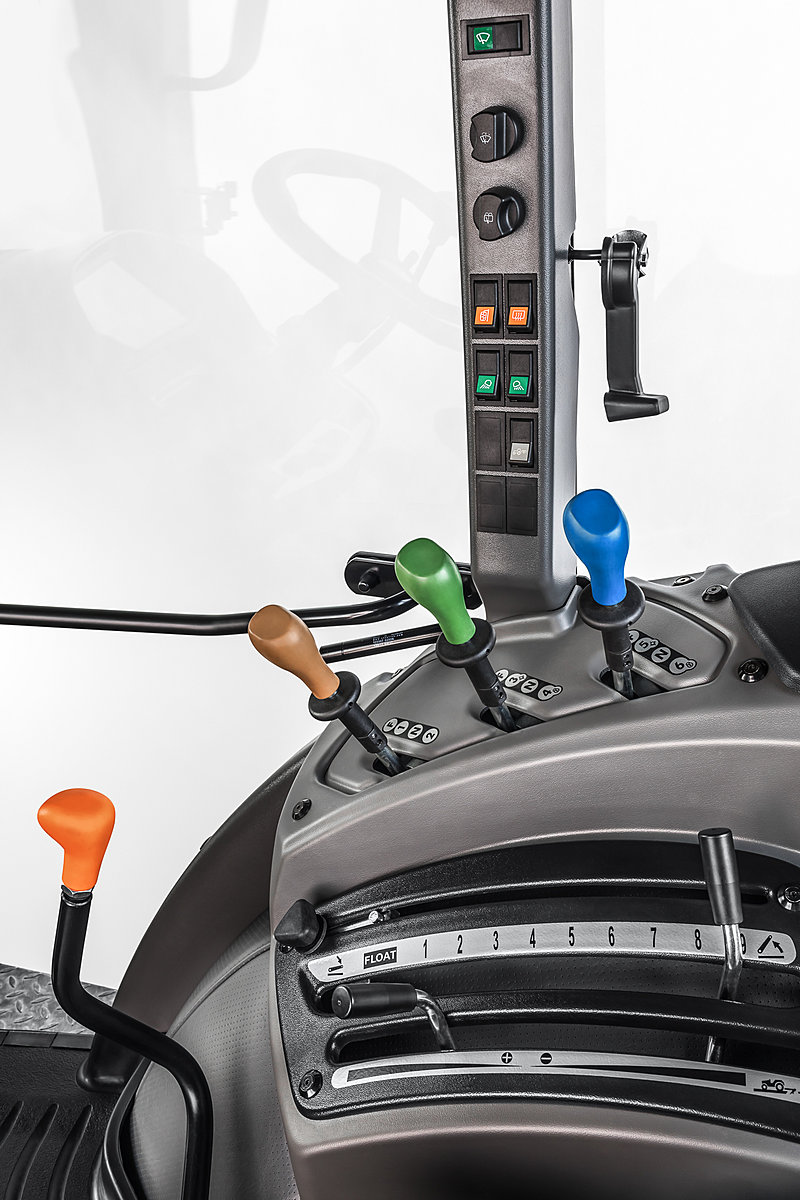

HYDRAULICS
Reliable operation
in all directions
To control the three-point hitch, Proxima tractors are equipped with a mechanically-operated hydraulic distributor. The Proxima GP and Proxima HS models are optionally available with BOSCH electro-hydraulic control (EHR) with the HitchTronic function. The maximum lifting force of the three-point hitch is 45 kN.

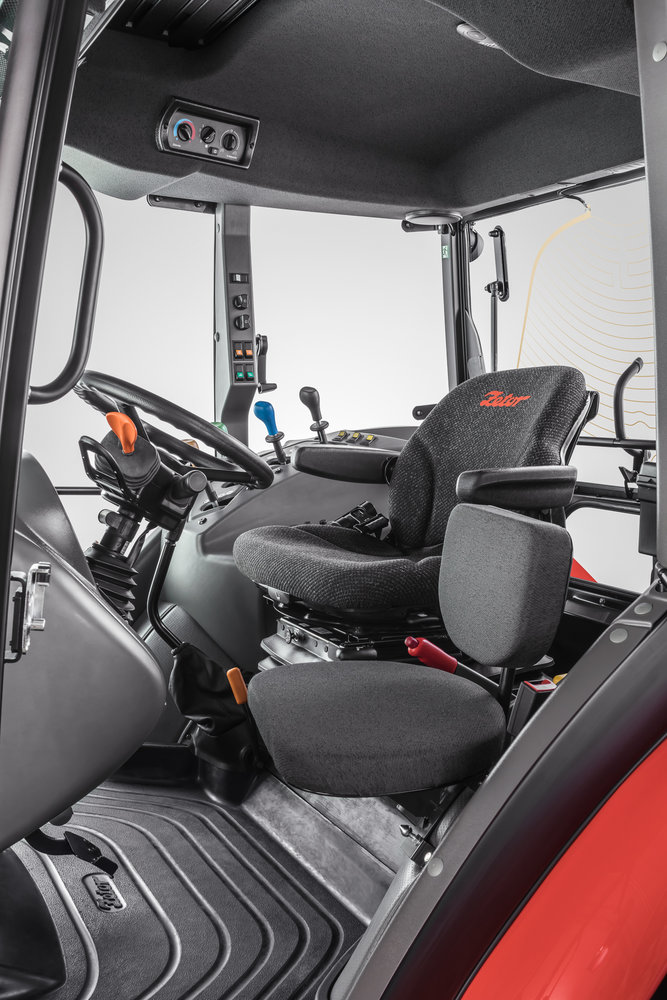

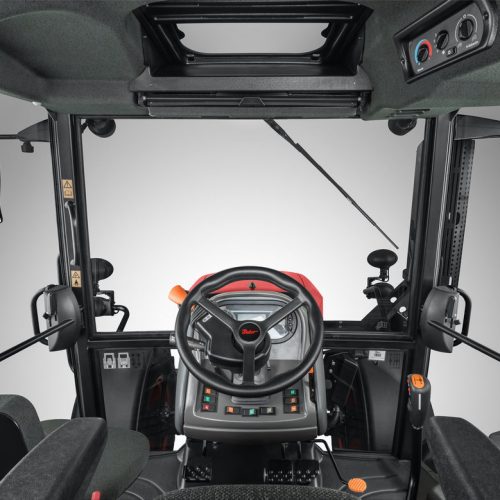

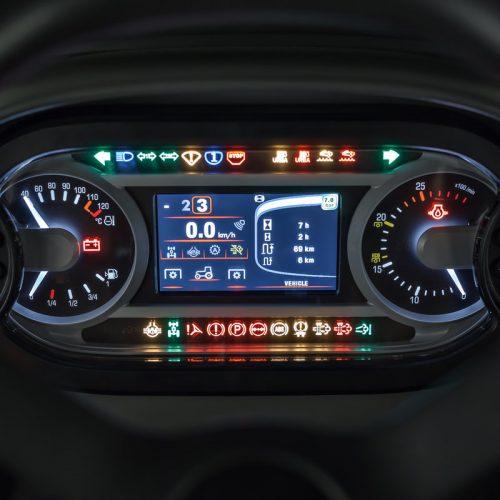

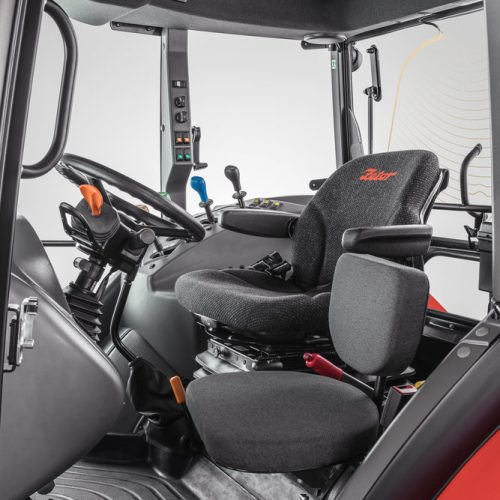

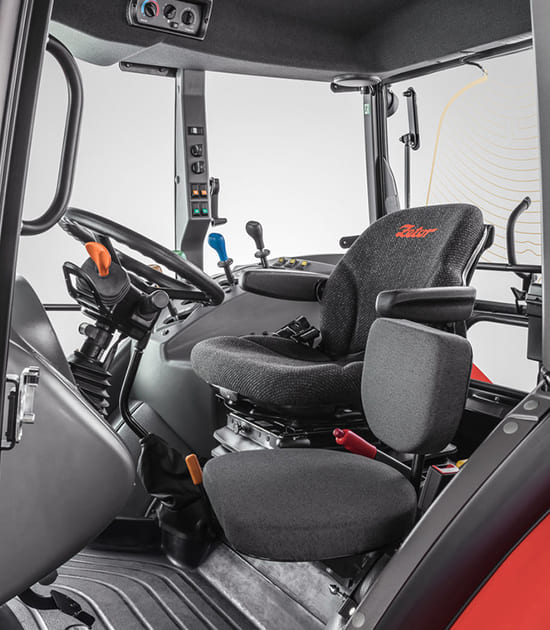

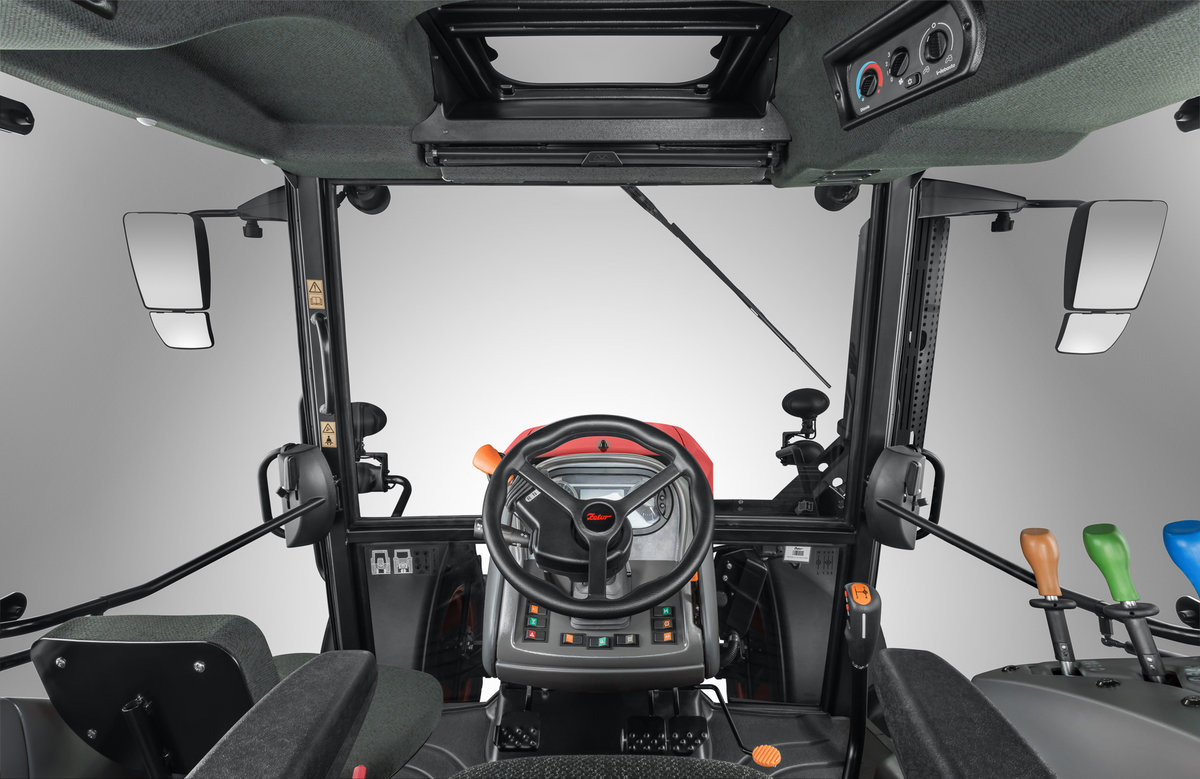

CAB
Driver comfort
The spacious cabs of Proxima tractors are comfortable and safe, with optimum views to all sides, including the roof view, for the best control of the front loader. Tractor operation is also simple, clear and intuitive.
Specifications
MODEL
Proxima 100
Proxima 120
ENGINE
Type Stage III A
1005
1405
Emission level
Stage IIIA
Stage IIIA
Homologated Power [kW] (2000/25/EC
70.3
86.2
Homologated Power [HP] (2000/25/EC)
96
117
Rated Speed [rpm]
2,200
2,200
Number of Cylinders
4
4
Number of Valves
8
8
Aspiration
Turbocharged
Turbocharged
Bore/Stroke [mm]
105/120
105/120
Displacement [cm3]
4,156
4,156
Cooling
Viscous fan clutch
Viscous fan clutch
Max. Torque [Nm] (2000/25/EC)
429
493
Improvement of torque [%) (ECE R24)
46
37
GEARBOX
Type
Mechanical /synchro shuttle
Mechanical with automatic 3-stage multiplier, electro-hydraulic synchro shuttle
Reverser
Mechanical shifting, synchronized
Under load at speeds up to 10 kph
Shifting
Fully synchronized
Fully synchronized
No. of Gears (forward/reverse)
10/2; 12/12 OPT or with 20/4 creeper OPT
24/24
Speed [kph]
30 or 40 OPT
40
PTO
Type
Independent and ground speed
Independent and ground speed
PTO Clutch type
Dry friction clutch
Wet multi-plate clutch
Rear PTO Revolutions
540/1,000 or 540/540E OPT
540/1,000 or 540/540E OPT
Front PTO Revolutions OPT
1.000
1.000
Max. Power of Front PTO [kW] OPT
45
60
HYDRAULICS
Type
Mechanically controlled – D. M. P.
Mechanically controlled – D. M. P. Electro-hydraulic control OPT
Three-Point Hitch
Category II
Category II
Control
Mechanical
Mechanical / electronic (HitchTronic OPT
Max. Lift Capacity [kN]
45
45
Lift capacity in the entire range of links [kN]
42
42
Operating Pressure [MPa]
19
19
Pump Capacity [l*min-1]
50; 60 OPT
50; 60 OPT
Hydraulic Outputs (Quickcouplers)
2+1, 4+1 OPT or 6+1 OPT
4+1, 6+1 OPT or 8+1 (only with electro-hydraulic control) OPT
Hitches
Modular CBM hitch system with multistage hitch
Modular CBM hitch system with multistage hitch
CAB
Cab version
Cabin or open station
Cabin or open station
Roof protection
Cabin: standard roof or protective roof FOPSOPT Open station*: without frame or with frame and cannopy
Cabin: standard roof or protective roof FOPSOPT Open station*: without frame or with frame and cannopy
Seat
Zetor seat; Zetor seat with mechanical/ pneumatical suspension OPT
Zetor seat; Zetor seat with mechanical/ pneumatical suspension OPT
Passenger Seat OPT
With or without safety belt
With or without safety belt
Steering Wheel
Fixed or Tiltable and telescopic OPT
Fixed or Tiltable and telescopic OPT
Air-Conditioning
Manual OPT
Manual OPT
OTHER SPECIFICATIONS
Drive System
4 WD
4 WD
Steering
Hydrostatic
Hydrostatic
Operating/Parking Brakes
Wet disc, hydraulically operated / mechanically operated
Wet disc, hydraulically operated / mechanically operated
Front Brakes
By connecting front driven axle
Wet disc brakes in wheels
Trailer Brakes
1+2 hose pneumatic OPT or hydraulic OPT
1+2 hose pneumatic OPT or hydraulic OPT
Max. Front Ballast [kg] OPT
466
466
Max. Rear Wheel Ballast [kg] OPT
270
270
Tank Volume [l]
124/150 OPT
180
Front Mudguards OPT
Fixed
Fixed
Heated Mirrors, Rear Defroster
Optional
Optional
Pre-Wiring for Radio
Optional
Optional
DIMENSIONS
Operating Weight** [kg]
3,750–4,546
4,014–4,257
Max. Length [mm]
4,710
4,941
Max. Width [mm]
2,319
2,319
Max. Height [mm]
2,725
2,738
Wheelbase [mm]
2,308 (4WD)
2,442
Front Wheels *** [mm]
9.00-16 / 280/85-24 (11.2-24)
280/85-24 (11.2-24)
Rear Wheels *** [mm]
420/85-30 (16.9-30)
420/85-30 (16.9-30)
